Floorstanding Tensile Testing Equipment Micro Control kgf / N / Lbf Unit Switching

Floorstanding Tensile Testing Equipment Micro Control kgf / N / Lbf Unit Switching

1, the sensor: high-precision load cell (sensor)

2, capacity selection: 500 / 1K / 2K / 5K / 20K / 30K kg

3, unit switching: kgf, N, Lbf

4, effective measuring range (%): 100

5, load resolution: 1/10000 whole inside and outside regardless of file, and the resolution of the

same

6, the accuracy level: 1

7, load accuracy: within ± 1% of the indication

8, test trip: 950mm

9, the effective width: 420mm

10, Displacement Resolution: 0.1mm

11, the display: English LCD: can display the test value / maximum value / rupture value /

elongation

12, speed range: 25 ~ 500mm / min

13, power system: DC DC motor

17, fixture configuration: According to the user's product requirements selected fixture a pay

18, power supply: power supply: DC power supply: AC-220V ± 10%, 50HZ 5A

19, volume: 82X56X195cm

20, weight: about 560kg

tensile strength testing machine

tensile strength test equipment

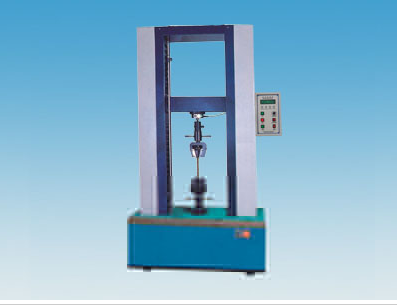

Floorstanding Tensile Testing Equipment Micro Control kgf / N / Lbf Unit Switching Images
